100 mm ABS Covered Medical Caster with threaded stem with brake-Suzhou Mingxu Hardware Fittings Co., LTD.

100 mm ABS Covered Medical Caster with threaded stem with brake Id：M20-L-B-100-ZG

Description ： cross-wound main frame shaft structure; the bearing cover progressive mold is formed at one time; the double pedal design for braking and unlocking are lightweight and convenient.

Online inquiry

Previous Next

Detailed content

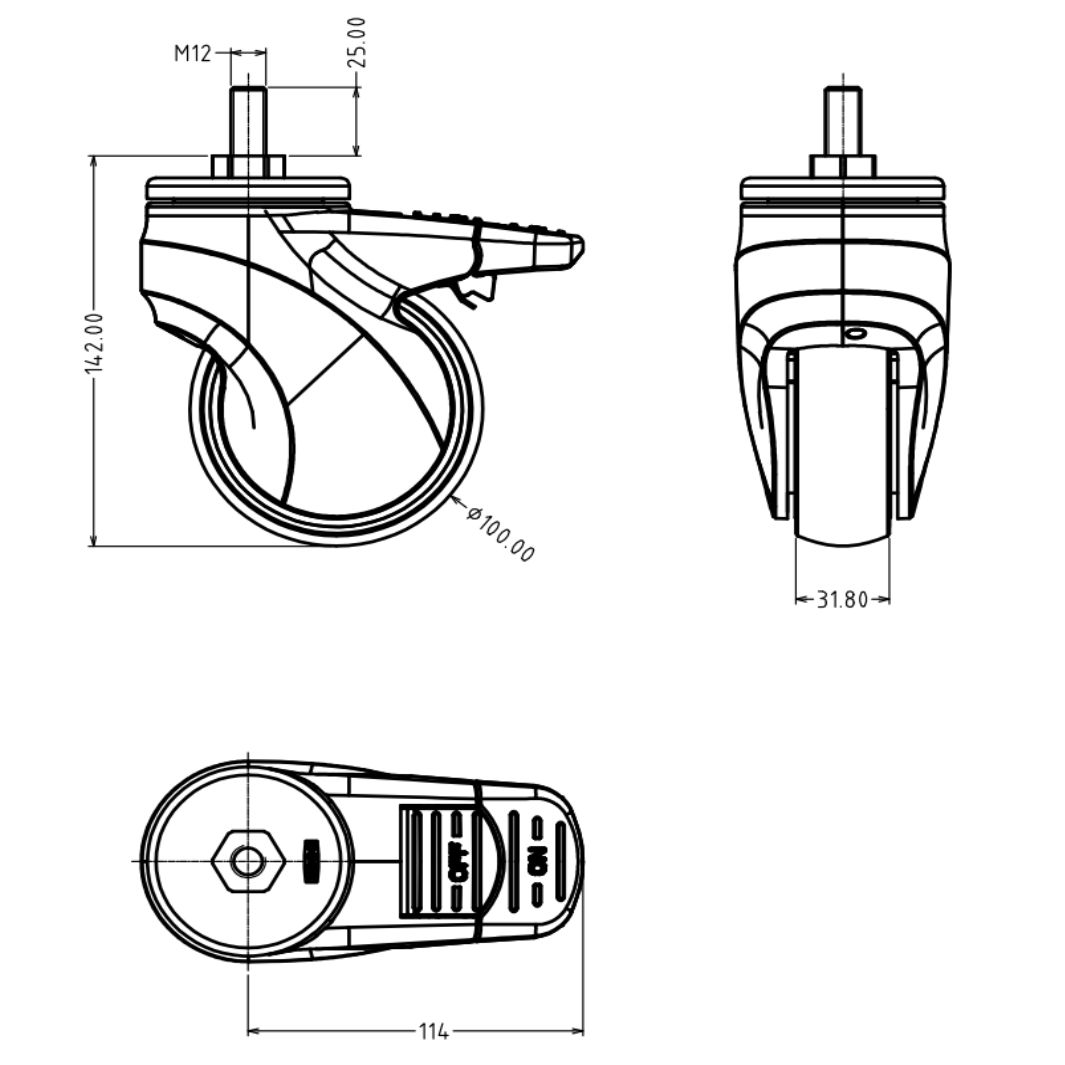

Technical Data	4" 100mm
Wheel diameter	100 mm
Width of Tread	31.80 mm
Castor Width	72 mm
Screw Dia.	M12 mm
Length of Screw	25 mm
Radius of rotation	114 mm
Overall height	142 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	1.1kg
Load capacity	100 kg
Load capacity(Static)	200 kg
