125 mm ABS Covered Medical Caster with stem rod with brake-Suzhou Mingxu Hardware Fittings Co., LTD.

125 mm ABS Covered Medical Caster with stem rod with brake Id：M20-SR-B-125-ZG

Description ： cross-wound main frame shaft structure; the bearing cover progressive mold is formed at one time; the double pedal design for braking and unlocking are lightweight and convenient.

Online inquiry

Previous Next

Detailed content

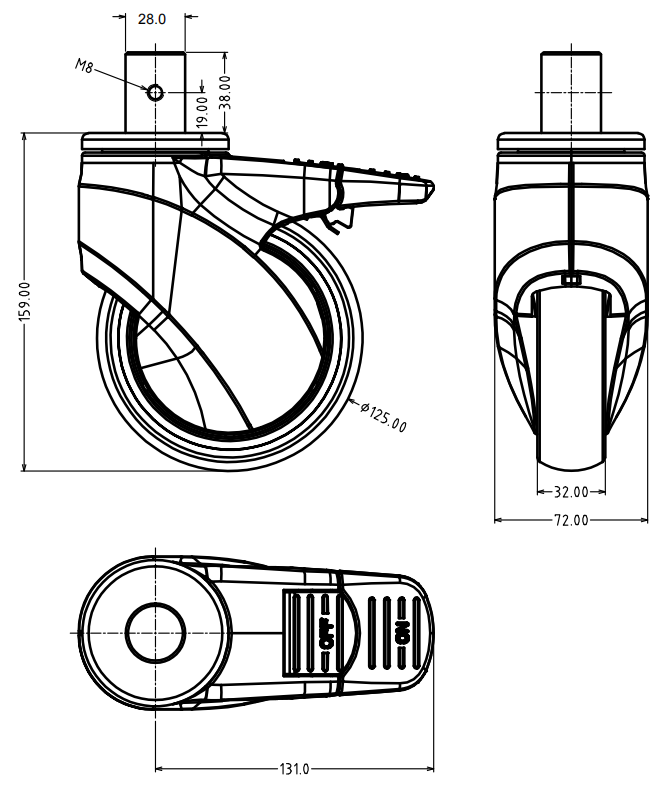

Technical Data	5" 125mm
Wheel diameter	125 mm
Width of Tread	32 mm
Castor Width	72 mm
Dia. of Cylindrical stem	28 mm
Length of Rod	40 mm
Screw hole dia.	M8
Radius of rotation	131 mm
Overall height	159 mm
Temperature	- 10 / + 40 °C
Standard	EN 12531
Weight	1.1kg
Load capacity	110 kg
Load capacity(Static)	220 kg
